Bailey Bridge Engineering Solutions
Professional Bailey bridge systems for rapid deployment and reliable performance. Modular design, proven engineering excellence, and versatile applications for temporary and permanent bridge construction worldwide.

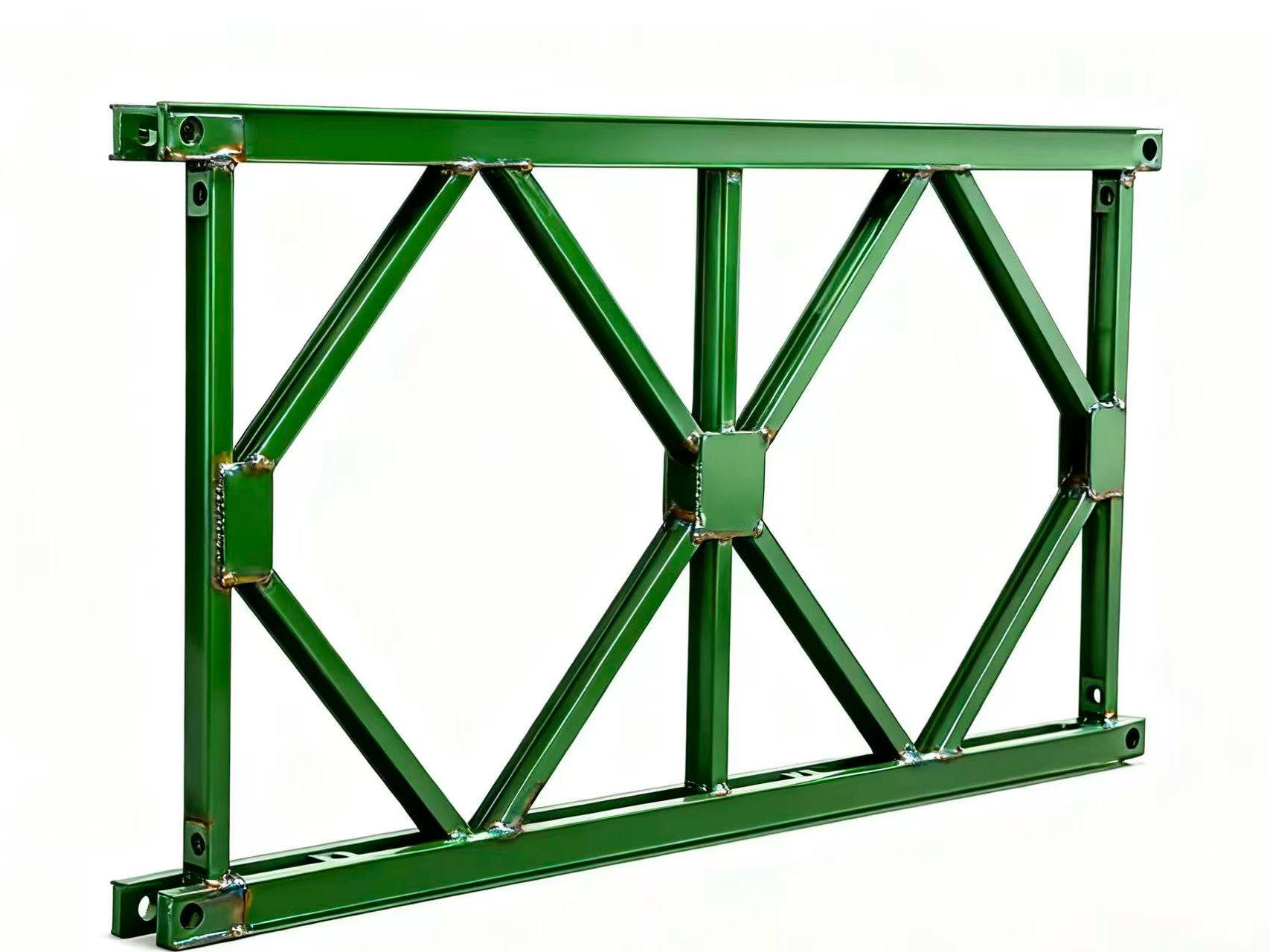

What is Bailey Panel?
Bailey panels are versatile engineering materials primarily used to enhance the load-bearing capacity, stability, and safety of structures. They consist of standardized steel components with simple structure, convenient transportation, and quick installation.
Bailey panels are widely used in bridge engineering, road engineering, water conservancy engineering, and construction fields. In bridge engineering, they are used to construct temporary steel bridges and trestle bridges, suitable for crossing rivers, swamps, and other complex terrains, and can also be used for bridge reinforcement and extending service life.
In the construction field, Bailey panels are used to assemble gantry cranes, guide beams, bridge erection machines, and lifting baskets, suitable for on-site construction tasks such as lifting precast components in prefabrication yards and transporting beams at bridge piers. Their high load capacity, excellent interchangeability, and strong adaptability make them play a vital role in various engineering scenarios.
Key Advantages
Bailey bridges offer unmatched versatility and reliability for bridge construction projects
Modular Design
Standardized components for flexible configuration and easy assembly with interchangeable parts
Rapid Construction
Quick assembly without heavy machinery or special tools, reducing construction time significantly
High Load Capacity
Designed to support heavy vehicles and equipment with proven structural integrity
Reusable Components
Components can be disassembled and reused for multiple projects, maximizing investment value
Proven Reliability
Battle-tested design with decades of successful applications worldwide
Easy Maintenance
Simple maintenance procedures with readily available replacement parts
Product Range
Comprehensive range of Bailey bridge products for all bridge construction needs and applications

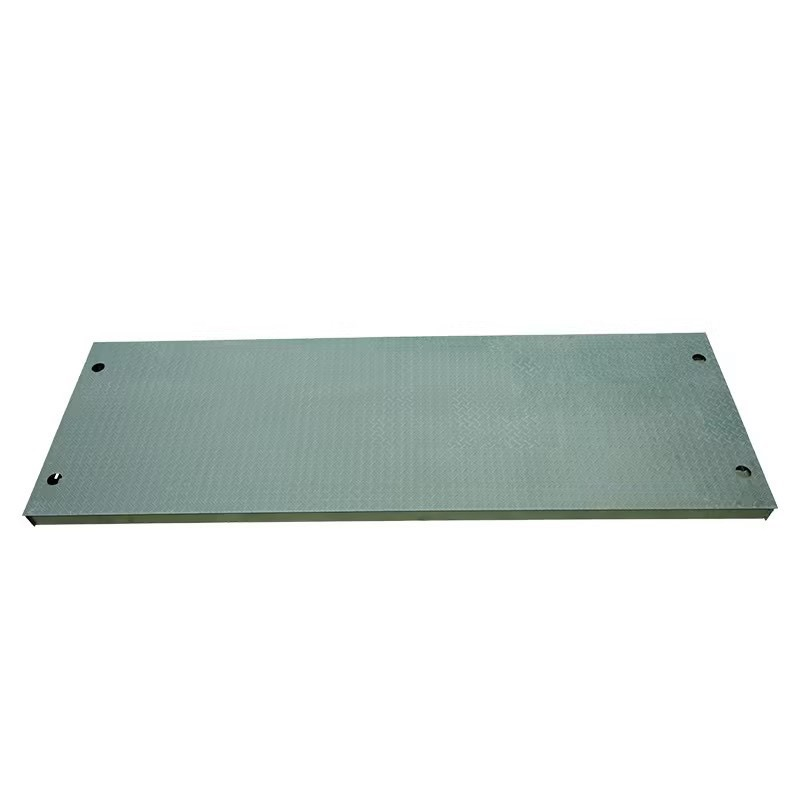

Bridge Deck Panel
Professional bridge deck panel for bridge engineering with high load capacity, anti-slip surface design, safe and reliable
Key Features:
- High-strength steel construction with strong load capacity
- Anti-slip surface texture design for enhanced safety
- Standardized dimensions for easy installation and assembly
- Anti-corrosion treatment for extended service life

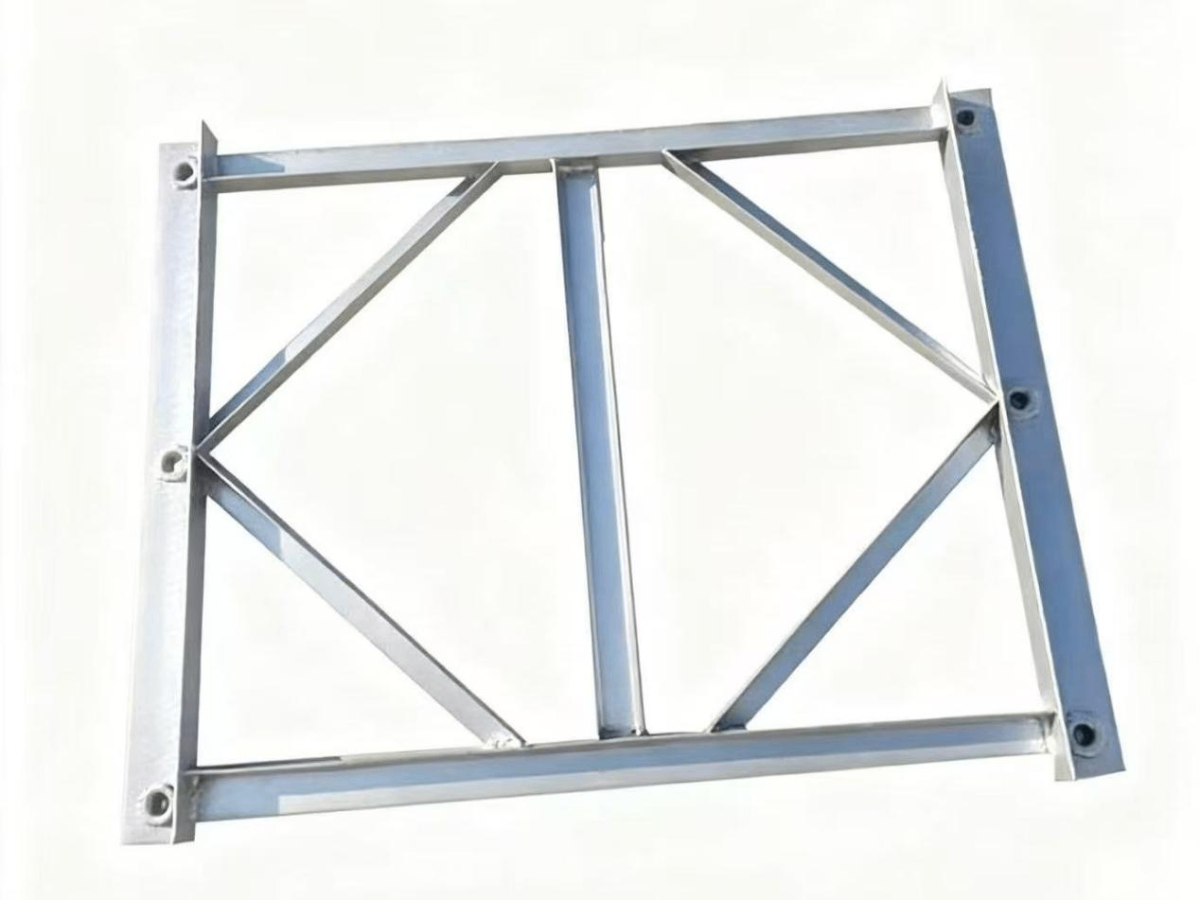

Galvanized Bailey Bracket
Hot-dip galvanized professional Bailey bracket with excellent anti-corrosion performance, stable connection, suitable for various bridge projects
Key Features:
- Hot-dip galvanizing process with excellent corrosion resistance
- Standardized connection holes for convenient assembly
- High-strength steel with strong load-bearing capacity
- Reusable and environmentally friendly

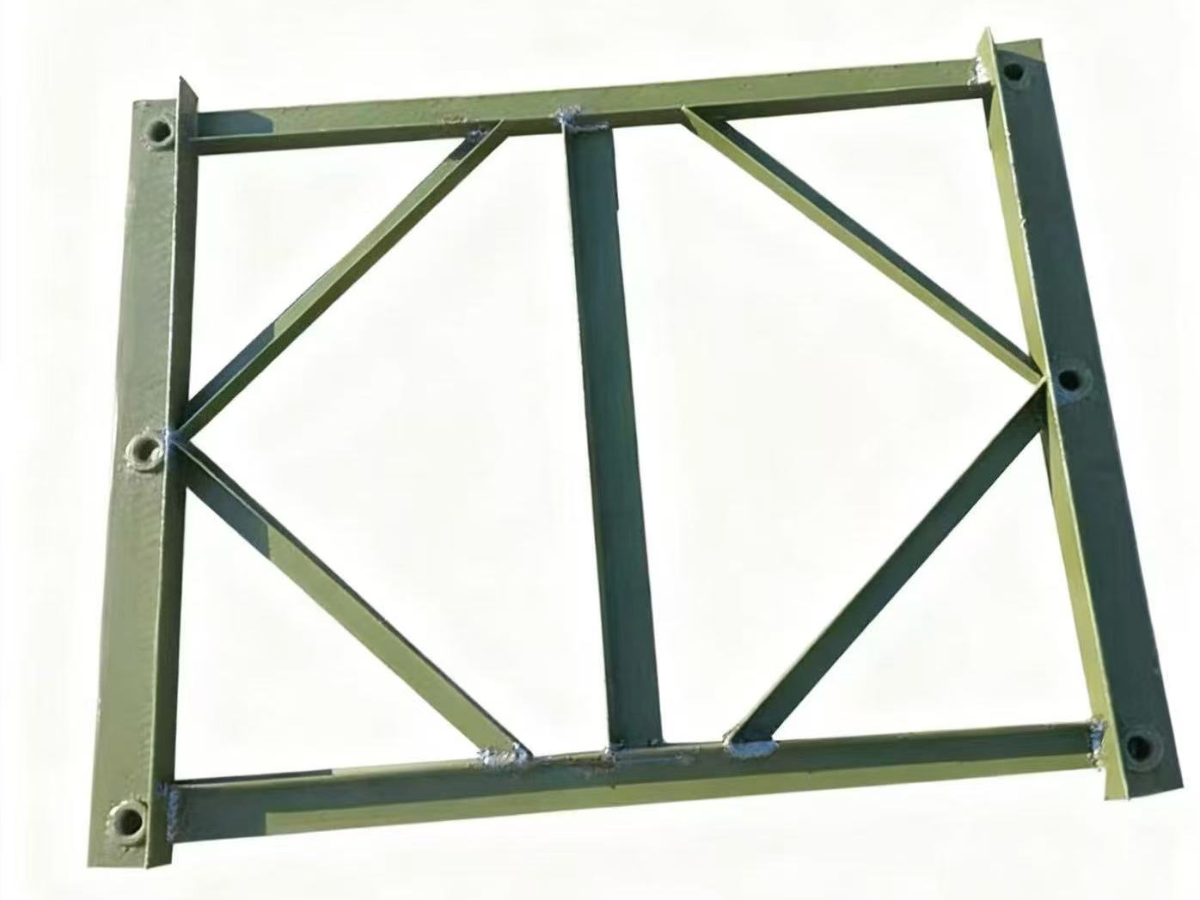

Green Paint Bailey Bracket
Green coating professional Bailey bracket, beautiful and durable, suitable for municipal engineering, stable and reliable connection
Key Features:
- Professional green coating, aesthetically pleasing
- Suitable for municipal landscape projects
- Strong weather resistance with long service life
- Stable connection, safe and reliable
Application Scenarios
Bailey bridges serve diverse applications across multiple industries and scenarios
Temporary Bridges
Quick deployment for construction detours and temporary access during infrastructure projects
Emergency Response
Rapid bridge replacement for disaster relief and emergency access in crisis situations
Military Applications
Tactical bridge solutions for military operations and logistics support
Construction Projects
Permanent and semi-permanent bridge solutions for construction and development projects
River Crossings
Reliable bridge solutions for river and waterway crossings in various environments
Industrial Access
Heavy-duty bridge solutions for industrial facilities and equipment transportation
Technical Specifications
Detailed technical specifications and performance parameters for Bailey bridge systems
Load Classifications
- Class 40: Light vehicles and pedestrian traffic
- Class 70: Standard commercial vehicles
- Class 100+: Heavy industrial and military vehicles
Span Capabilities
- Short span: 10-30m for local crossings
- Medium span: 30-60m for standard applications
- Long span: 60-120m for major crossings
Assembly Features
- No welding required - bolt connections only
- Hand tools only - no heavy equipment needed
- Rapid deployment - hours instead of days
Material Specifications
- High-strength steel construction
- Galvanized coating for corrosion resistance
- Standardized component dimensions
Assembly Process
Simple and efficient assembly process for rapid bridge deployment
Site Preparation
Prepare foundation and access points
Panel Assembly
Connect standardized steel panels
Deck Installation
Install bridge deck and railings
Final Inspection
Quality check and load testing
Need Bailey Bridge Solutions?
Contact our bridge engineering specialists for professional consultation and custom Bailey bridge solutions. We provide comprehensive support from design to installation.
